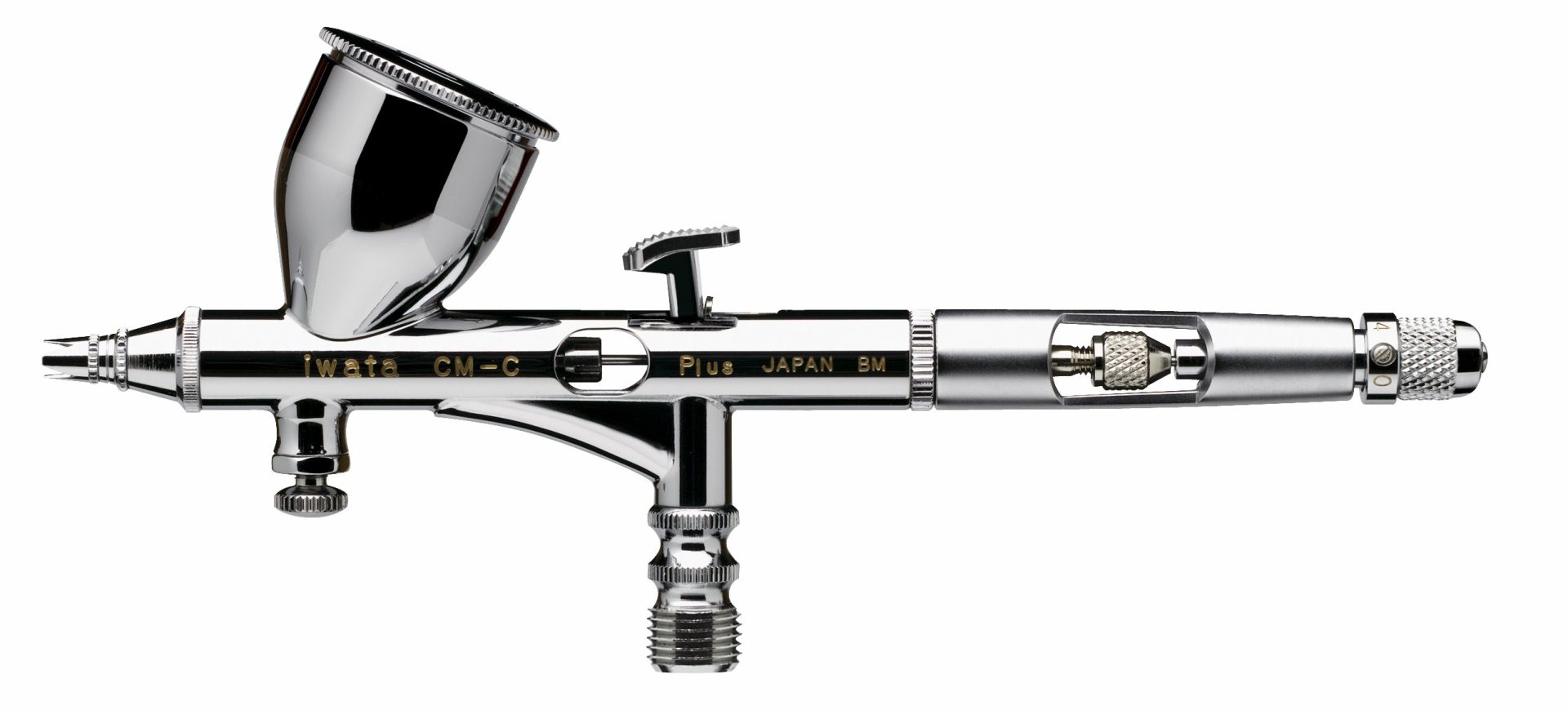

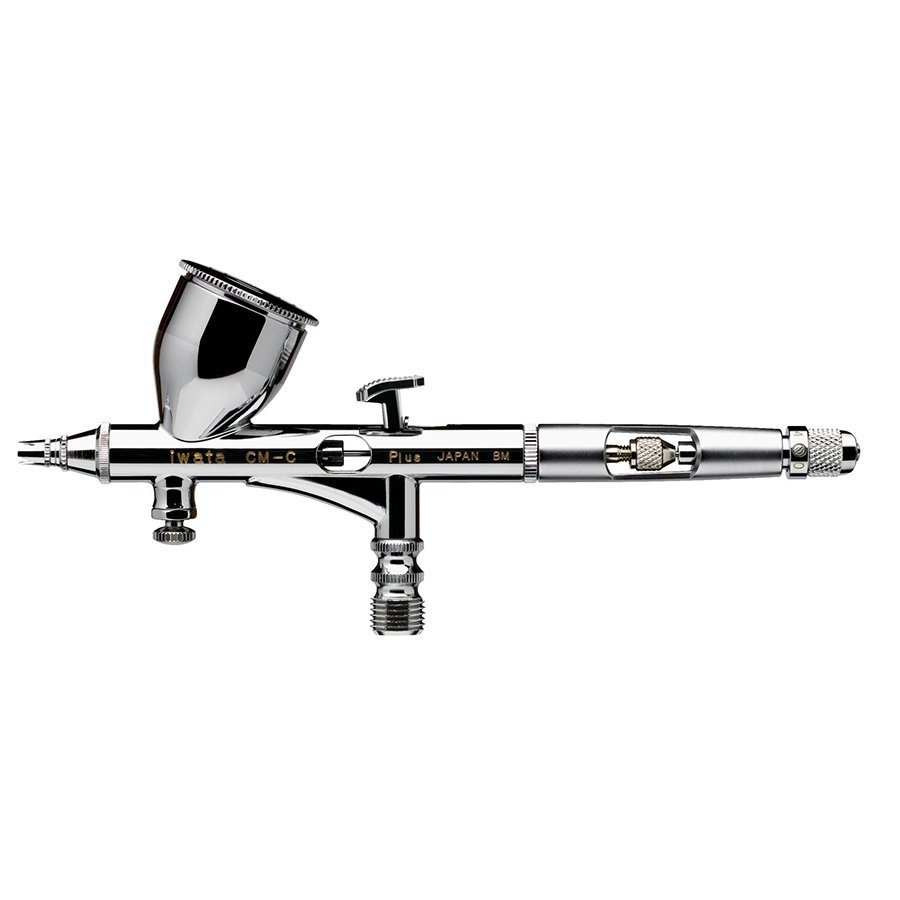

Iwata Custom CM C Plus V2 Airbrush
The Iwata Custom CM C Plus V2 Airbrush is backed by Iwata’s 10 year warranty*.
Bartsharp Airbrush® is a fully authorised stockist for Iwata Airbrushes.
The Iwata Custom CM C Plus V2 Airbrush is the best of the best; designed and developed to surpass the demands of the ultimate professional.
Version 2, of the Iwata Custom CM C Plus, continues to provide exacting standards of atomisation and flawless spraying, however, it has a number of new improved design features…
· The lever guide is now fixed to the chucking guide for easier dis-assembly and re-assembly. No more lost parts or fiddling with tweezers to handle and sit the lever guide correctly.
· Trigger head is now square shaped providing a more ergonomic feel.
· Crown cap docking point, on the rear handle, securely holds you crown cap.
· Redesigned funnel shaped 9cc paint cup allows for effective use of only a couple of drops of paint and makes for ultra efficient, thorough and quick cleaning.
The Iwata Custom CM C Plus V2 provides absolute precision and control for fine detail spraying.
Your CM C air brush, and parts, has been produced using the world’s finest lathes and machining processes.
The CM C Plus V2 is then hand assembled, hand tested and adjusted by expert airbrush technicians prior to factory dispatch.
This process incorporates the now renowned “Matched Head System” which simply means that no CM C Plus V2 leaves the factory until the needle, nozzle and head assembly have been tested and confirmed as passing Iwata’s exacting quality standards.
The Iwata Custom CM C Plus V2 Airbrush provides you with the ultimate control in airbrushing.
Removal of the nozzle cap and crown cap enables you to create a huge range of stippling effect giving textures ranging from course to very fine.
The fitted 0.23mm matched system head provides a spray pattern of 0.23mm to 25m and is designed for use with light to medium paints and the artist who requires detail to mid range spraying.
The needle is made from hardened stainless steel which has been highly polished and provides silky smooth transition from fine grain detail to mid range spraying.

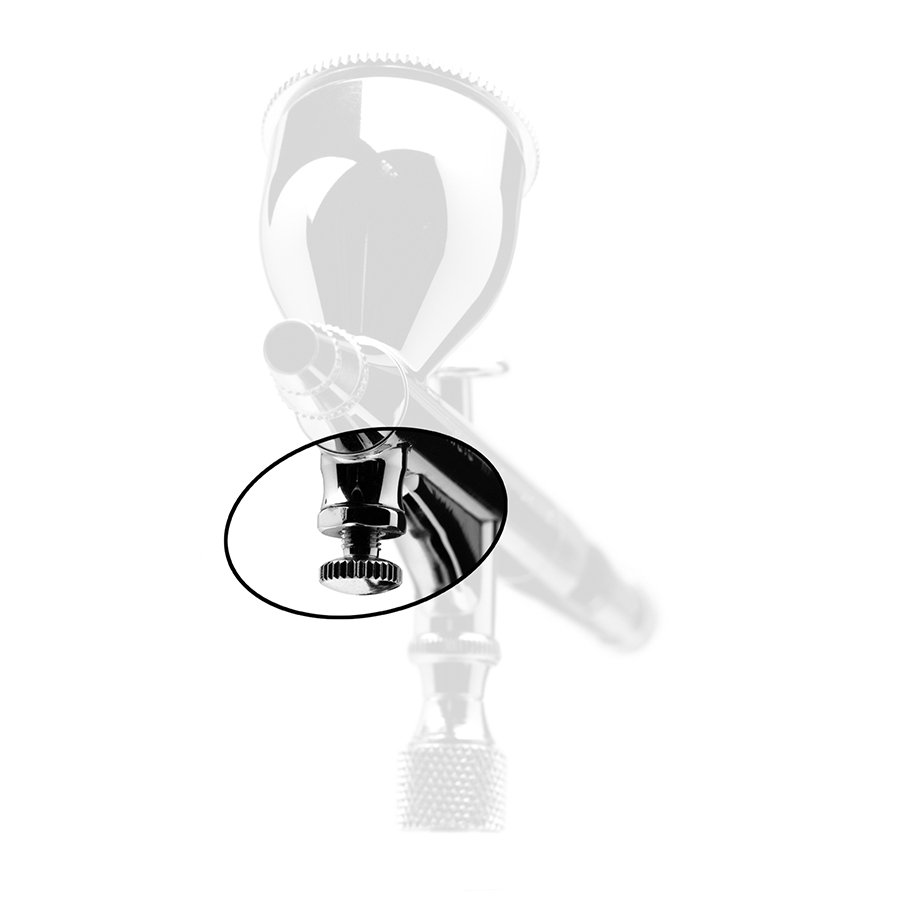

MAC (Micro Air Control) Valve
Your CM C Plus V2 is fitted with a MAC (Micro Air Control) Valve.
This feature provides finger tip control of the air volume passing through the airbrush head giving you infinite control over stippling effects, fine detail a finely atomised background spraying.
Fine grain detail and fine line work can be achieved by setting the optimal airflow for the paint flow and ultimate control.
Using the MAC Valve in the fully open position makes colour changes and airbrush cleaning quicker and easier. All of this is achieved with a quick turn of the control dial.
The Iwata Custom CM C Plus V2 Airbrush is also fitted with a PTFE needle packing bush which means that automotive, or other solvent based paints, can be used.
The rear handle, of the CM C Plus V2, has a cutaway section which exposes the needle and needle chucking nut.
This provides easy access, without the need to remove the rear handle, to loosen and draw the needle back from the nozzle, and front paint channel, for thorough and effective flushing and final clean up.
The Iwata Custom CM C Plus V2 Airbrush has a 1/8thBSP male air inlet. This is sometimes referred to as a 1/8” fitting although it is actually about 9.35mm!
We have Air Hoses which are a direct fit for this airbrush.
Need an air supply?
We would recommend the TC90T airbrush compressor as it is able to supply high air pressures as demanded by the Custom CM C Airbrush whilst using specialist candy and pearlescent paints.
Iwata Custom CM C Plus V2 Airbrush:
· Dual action
· Gravity Feed
· Fitted with 0.23mm Needle and Nozzle
· Matched Head System
· Internal Mix
· MAC (Micro Air Control) Valve
· Needle Adjust Screw For Precise Paint Flow Control
· 9cc Metal Gravity Feed Paint Cup With Push Fit Lid
· Rear Handle Cut Out
· Taller Trigger
· PTFE Solvent Proof Seals
· 10 Year Iwata Warranty
Your Iwata Custom CM C Plus V2 Airbrush will give you exceptional performance in:
Airbrush Custom Automotive Painting
Airbrush Model Painting
Airbrush Miniatures and Wargaming Figures
Airbrush Model Railway Painting
Airbrush Fine Art
Airbrushing Thinned Cosmetics
*10 Year Warranty is provided by Iwata
